May 1, 2016 / Shivananda Rao P

OEM 12c (Cloud Control) installation on Linux

In this article, I’d like to demonstrate how to installing OEM 12c Release 4 on a linux machine. In the upcoming posts, I’d demonstrate on upgrading this OEM 12c to 13c.

Environment:

OS                          : OEL 6
OEM 12c Software            : 12c Release 4 (12.1.0.4)
Repository Database version : 11.2.0.3
Repositry Database Name     : omsdb
Hostname                    : ora1-2



This article assumes that oracle 11.2.0.3 binary is pre installed on the server and that the repository database “omsdb” is created on it. Do not have the Enterprise Manager DB control configured for this database. If already configured, then have it removed using the “emca” utility with “-deconfig” option.
Download the OEM 12c Release 4 software from here http://www.oracle.com/technetwork/oem/grid-control/downloads/index.html The software consists of 3 disks.
Unzip all the 3 disks into a single directory. Here, I have unzipped them into “/u03/oem12c” directory.





[oracle@ora1-2 ~]$ cd /u03/
[oracle@ora1-2 u03]$ ls -lrt
total 6647416
drwxrwxrwx.  2 oracle oinstall      16384 Feb 26 16:14 lost+found
-rw-r--r--.  1 oracle oinstall 2195693096 Mar 25 14:22 em12104_linux64_disk1.zip
-rw-r--r--.  1 oracle oinstall 1877449643 Mar 25 14:26 em12104_linux64_disk2.zip
-rw-r--r--.  1 oracle oinstall 2727123784 Mar 25 14:31 em12104_linux64_disk3.zip
drwxr-xr-x. 11 oracle oinstall       4096 Mar 25 14:46 oem12c
[oracle@ora1-2 u03]$ cd oem12c
[oracle@ora1-2 oem12c]$ ls -lrt
total 1496020
-rwxr-xr-x. 1 oracle oinstall       5375 Dec 26  2013 runInstaller
drwxr-xr-x. 4 oracle oinstall       4096 Jan 15  2014 bipruntime
-rwxr-xr-x. 1 oracle oinstall 1530333315 May 24  2014 WT.zip
drwxr-xr-x. 4 oracle oinstall       4096 May 24  2014 oms
drwxr-xr-x. 4 oracle oinstall       4096 May 24  2014 jdk
drwxrwxr-x. 2 oracle oinstall       4096 May 24  2014 response
drwxrwxr-x. 2 oracle oinstall       4096 May 24  2014 wls
drwxr-xr-x. 7 oracle oinstall       4096 May 24  2014 install
drwxrwxr-x. 4 oracle oinstall       4096 May 24  2014 libskgxn
drwxr-xr-x. 9 oracle oinstall       4096 May 24  2014 stage
drwxr-xr-x. 2 oracle oinstall       4096 May 24  2014 plugins
-rw-r--r--. 1 oracle oinstall      42623 May 26  2014 release_notes.pdf



Create the required directories for the OMS and the agent installation.



[oracle@ora1-2 ~]$ cd /u01/app/oracle/
[oracle@ora1-2 oracle]$ ls -lrt
total 28
drwxr-xr-x.  2 oracle oinstall 4096 Mar 25 13:32 Clusterware
drwxr-xr-x.  3 oracle oinstall 4096 Mar 25 13:32 ora1-2
drwxr-xr-x.  3 oracle oinstall 4096 Mar 25 13:40 product
drwxrwxr-x. 11 oracle oinstall 4096 Mar 25 13:54 diag
drwxr-x---.  4 oracle oinstall 4096 Mar 25 13:57 admin
drwxr-xr-x.  7 oracle oinstall 4096 Mar 25 14:07 cfgtoollogs
drwxr-xr-x.  2 oracle oinstall 4096 Mar 25 14:12 checkpoints
[oracle@ora1-2 oracle]$
[oracle@ora1-2 oracle]$

[oracle@ora1-2 oracle]$ mkdir oms12c
[oracle@ora1-2 oracle]$ mkdir 12cagent



Start the installation by running the “runInstaller” script.



[oracle@ora1-2 oem12c]$ ./runInstaller

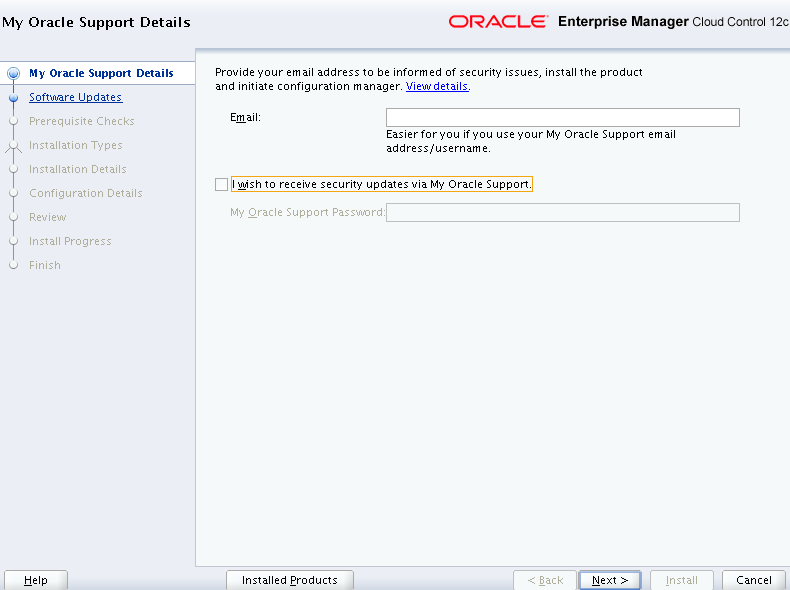

I wish to not receive any updates as this is my own test machine and hence I un-check the “I wish to receive security updates via My Oracle Support”

1

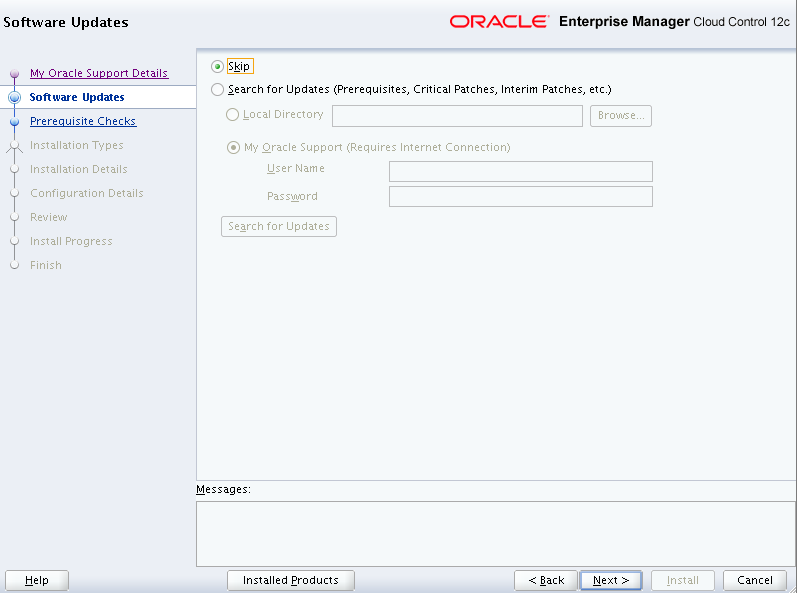

Select the “Skip” option.



2

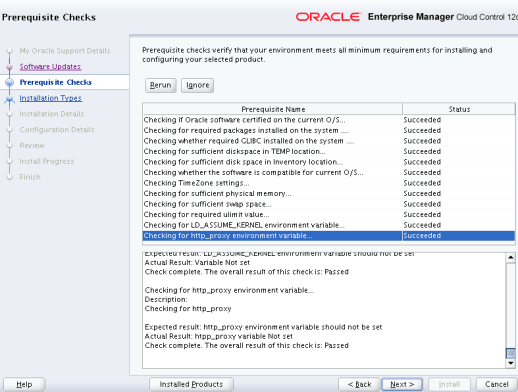

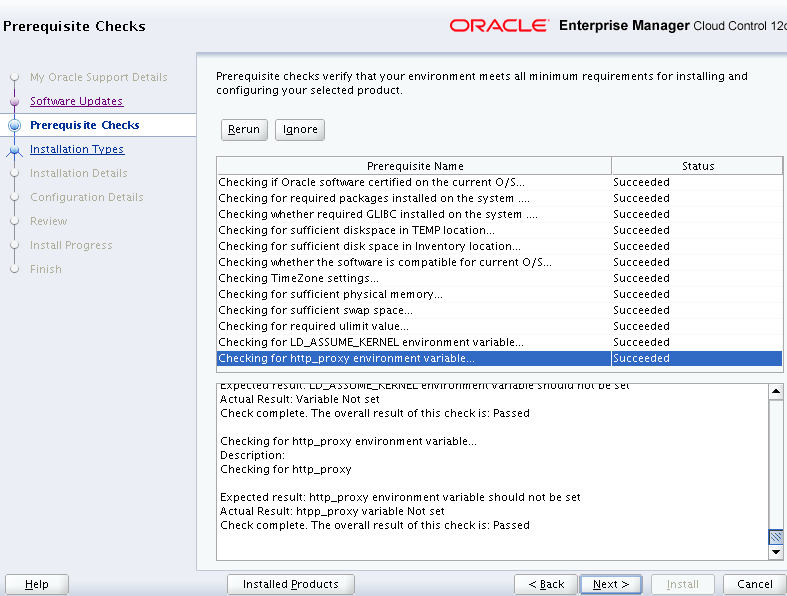

Run the “Prerequisite” checks in the next step. Look out for the Status section to know if the respective check Succeeded or Failed.



3

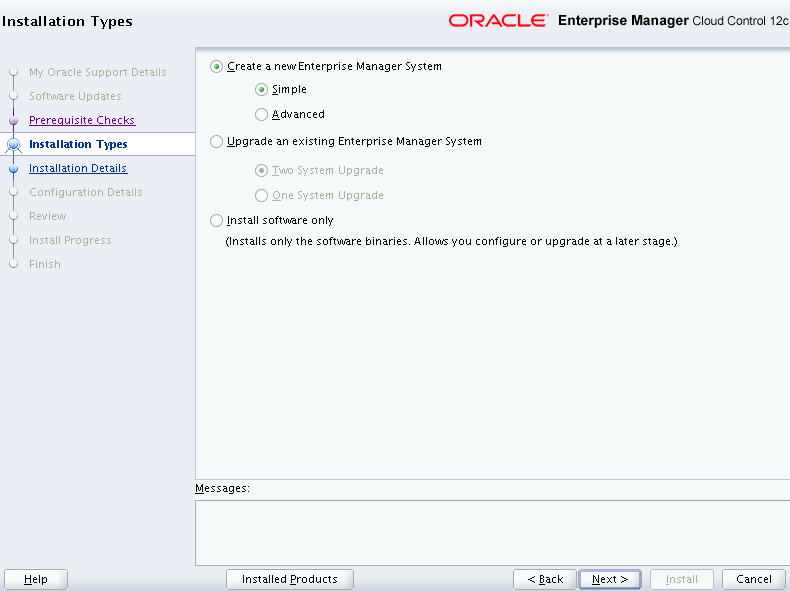

Select the “Create a new Enterprise Manager System” option with “Simple”. You can choose the Advanced option for more options.



4

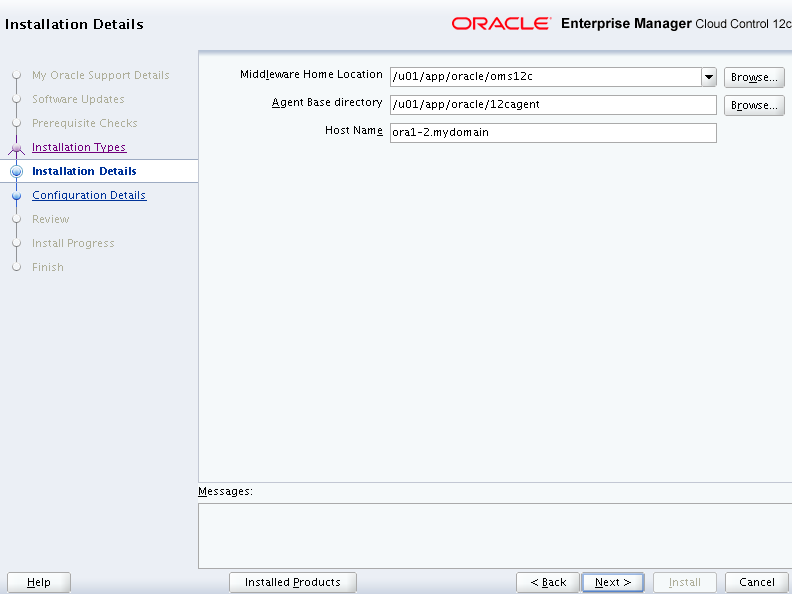

Provide the Middleware Home Location (OMS Home), Agent Base Directory Location and the Host names on which it has to be installed.



5

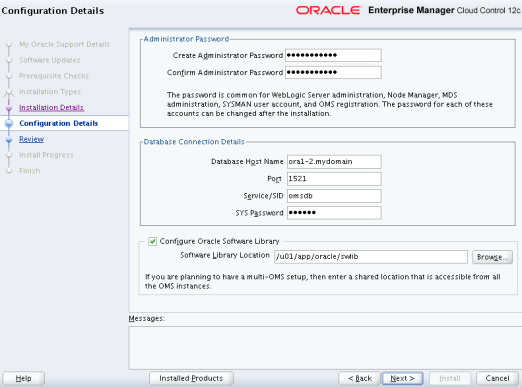

Provide the configuration details such as “Administrative Password”, OMS repository database details such as host name of the OMS repository database, the Port number on which the listener on this host servicing OMS repository database is listening to and the SYS password.



You can opt the “Configure Oracle Software Library” if planning to have a multi-OMS setup, else you may skip this.

6

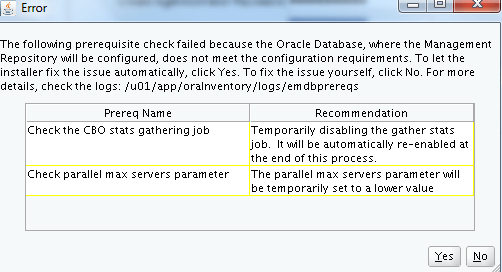

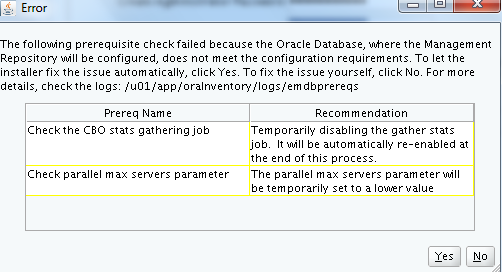

There would be some pre-requisite checks performed on the repository database and would be reported if any violations. If there are any other recommendations with changing of the repository database parameters, then necessary actions need to be taken upon accordingly.



7

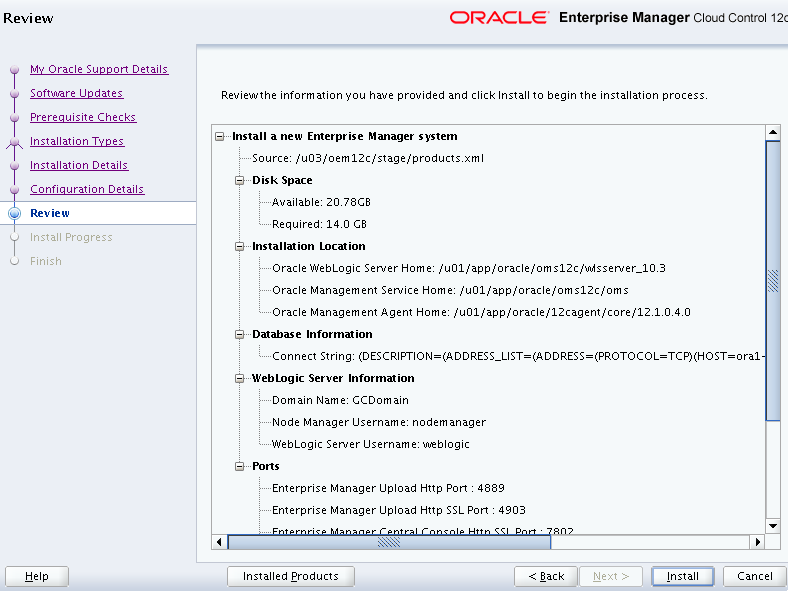

Review the summary.



8

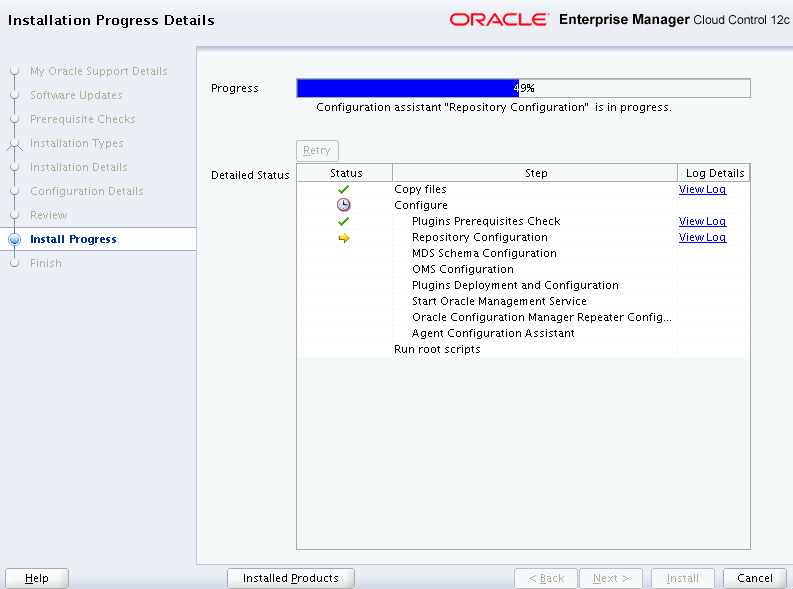

If all perfect, then proceed with the Install option.



9

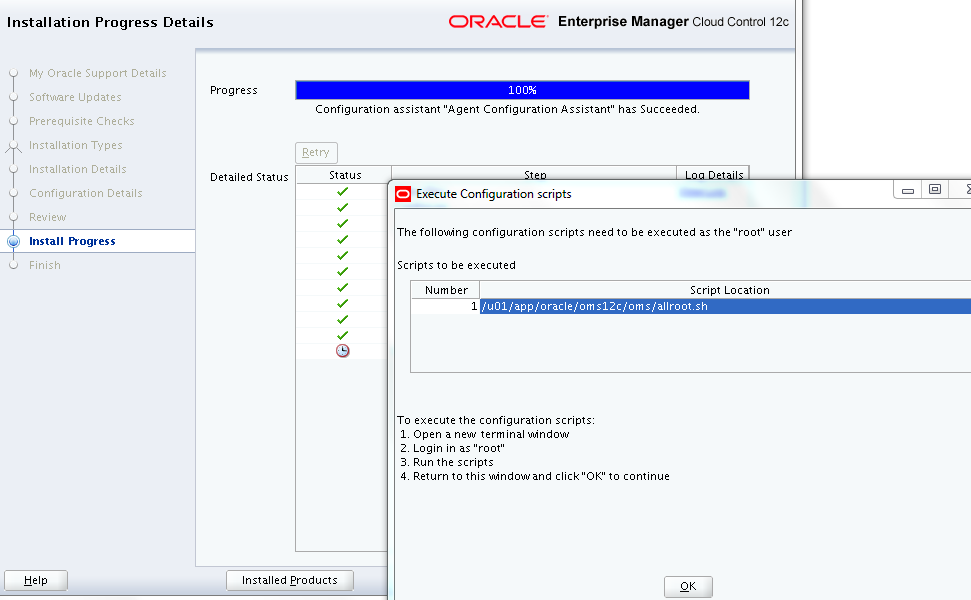

Run the script “allroot.sh” as ROOT user when prompted.



10



[root@ora1-2 ~]# /u01/app/oracle/oms12c/oms/allroot.sh

Starting to execute allroot.sh .........

Starting to execute /u01/app/oracle/oms12c/oms/root.sh ......
Running Oracle 11g root.sh script...

The following environment variables are set as:
    ORACLE_OWNER= oracle
    ORACLE_HOME=  /u01/app/oracle/oms12c/oms

Enter the full pathname of the local bin directory: [/usr/local/bin]:
The file "dbhome" already exists in /usr/local/bin.  Overwrite it? (y/n)
[n]:
The file "oraenv" already exists in /usr/local/bin.  Overwrite it? (y/n)
[n]:
The file "coraenv" already exists in /usr/local/bin.  Overwrite it? (y/n)
[n]:

Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root.sh script.
Now product-specific root actions will be performed.
/etc exist

Creating /etc/oragchomelist file...
/u01/app/oracle/oms12c/oms
Finished execution of  /u01/app/oracle/oms12c/oms/root.sh ......

Starting to execute /u01/app/oracle/12cagent/core/12.1.0.4.0/root.sh ......
Finished product-specific root actions.
/etc exist
Finished execution of  /u01/app/oracle/12cagent/core/12.1.0.4.0/root.sh ......
[root@ora1-2 ~]#

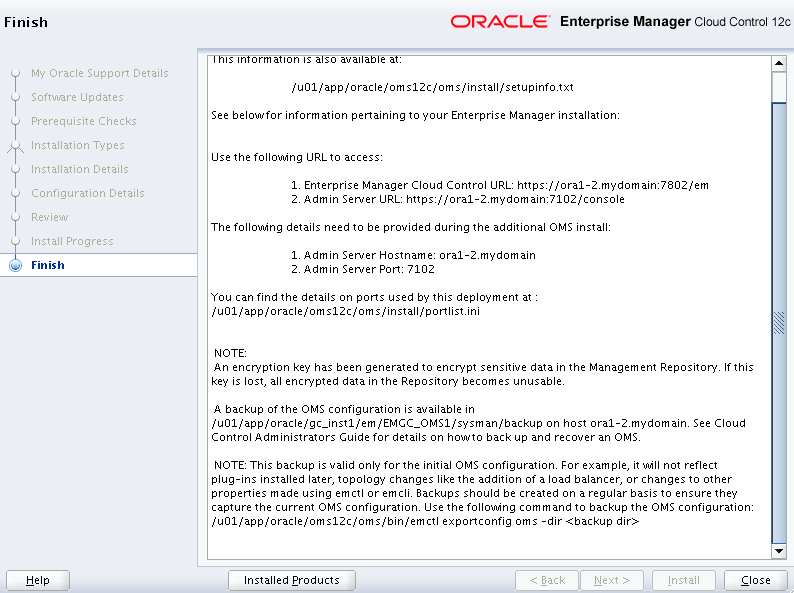

Review the final page consisting of the details of accessing the OEM 12c.



11

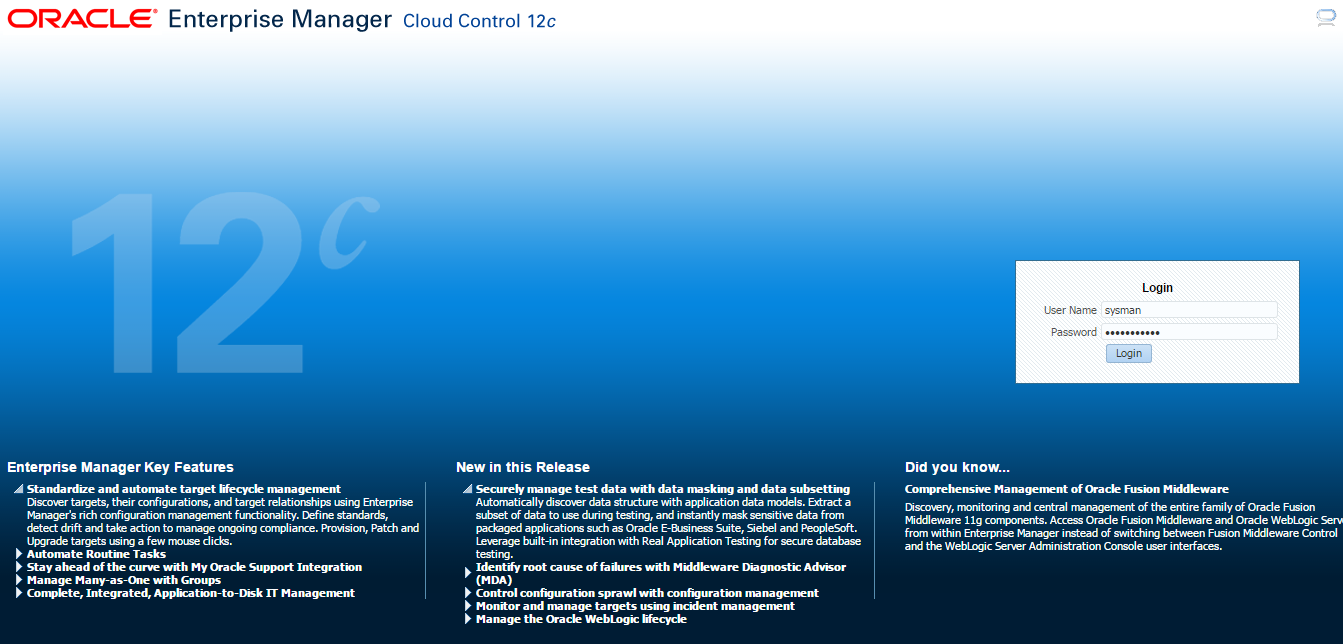

Login to the OEM 12c using the URL mentioned in the above page.



12

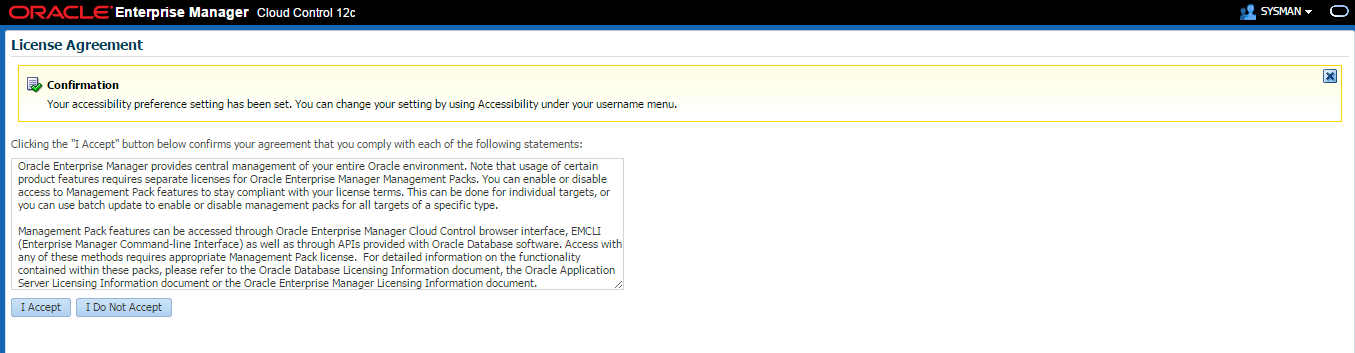

Accept the License Agreement.



14

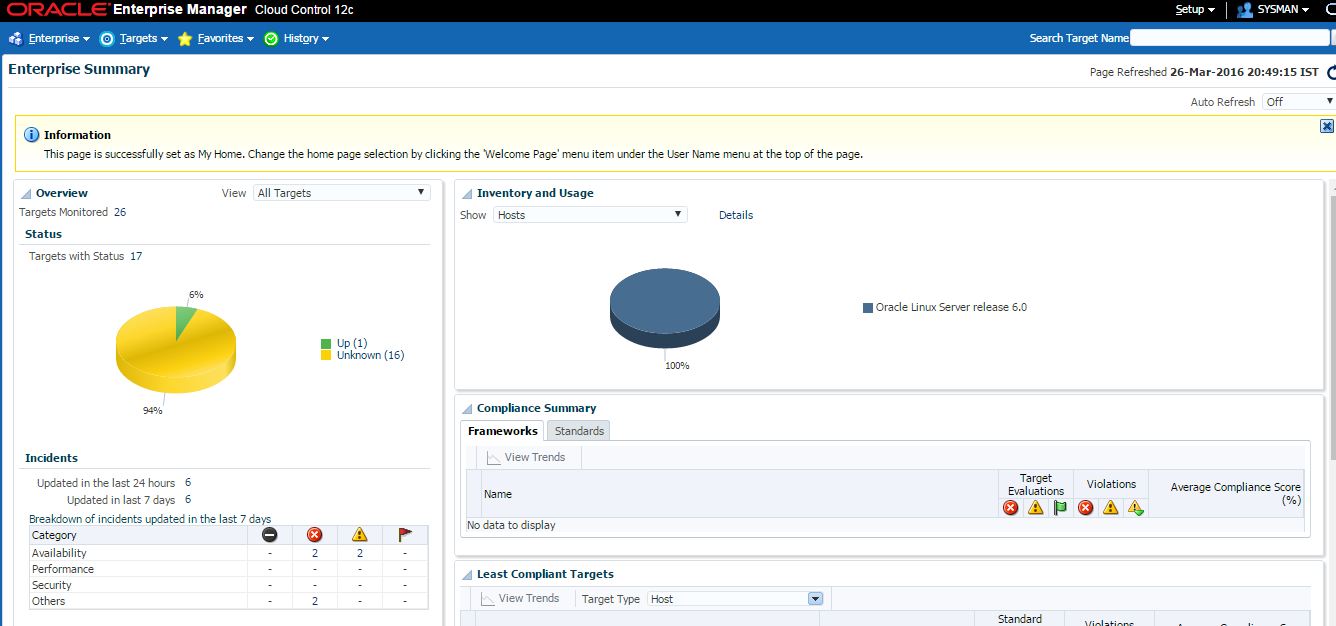

The selected homepage (“Summary” page in my case) will be shown up.



15
